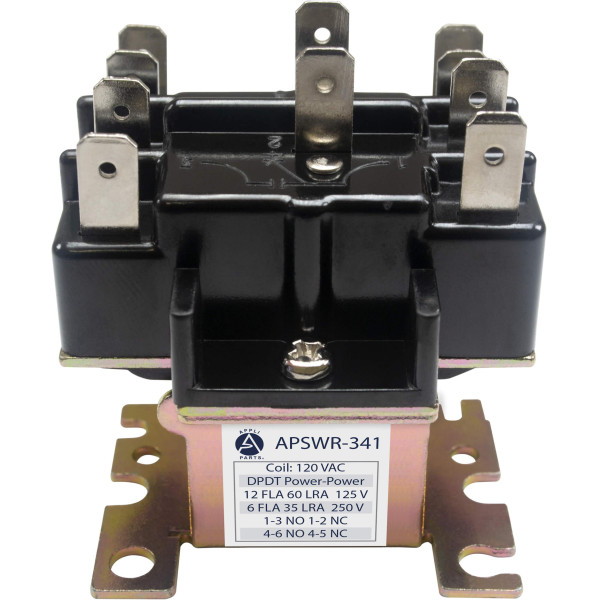

Appli Parts APSWR-341 90-341, 110 VAC, General Purpose Switching Relay, DPDT, for HVAC applications and other general electrical installations, Replaces APSR-341
SKU
G2010.341
Appli Parts APSWR-341 90-341, 110 VAC, General Purpose Switching Relay, DPDT, for HVAC applications and other general electrical installations, Replaces APSR-341
Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications

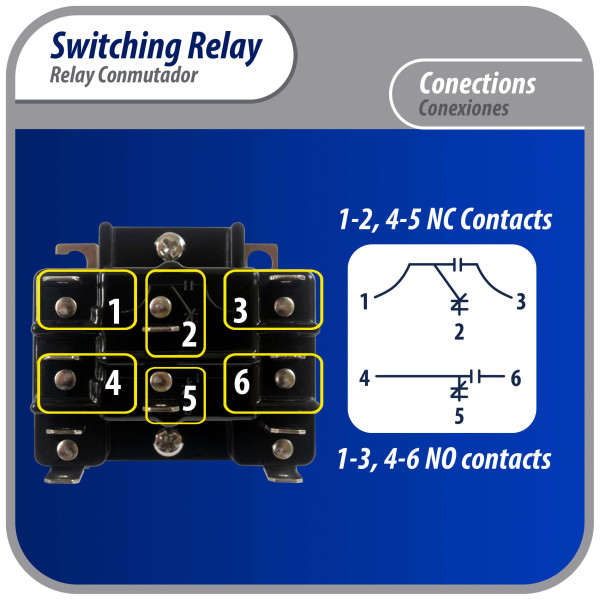

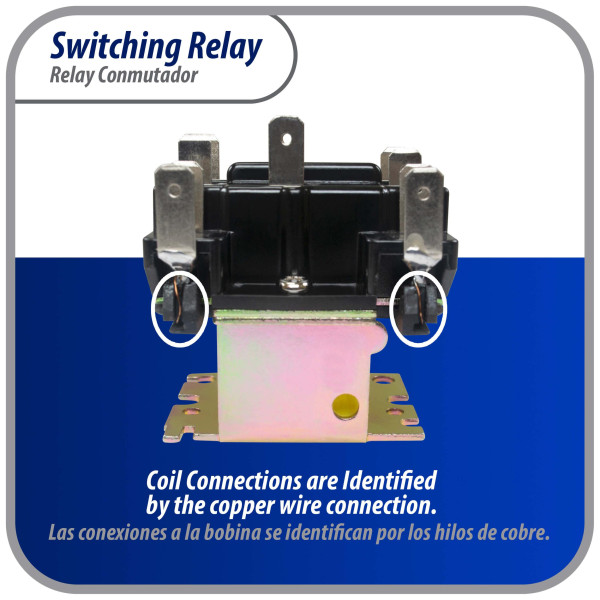

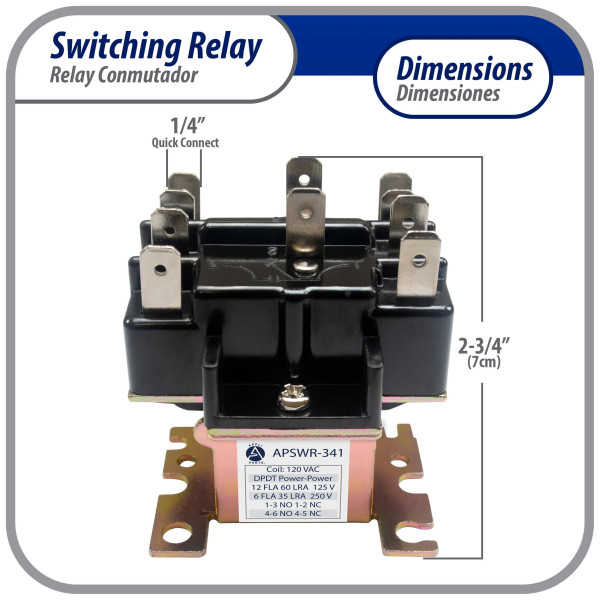

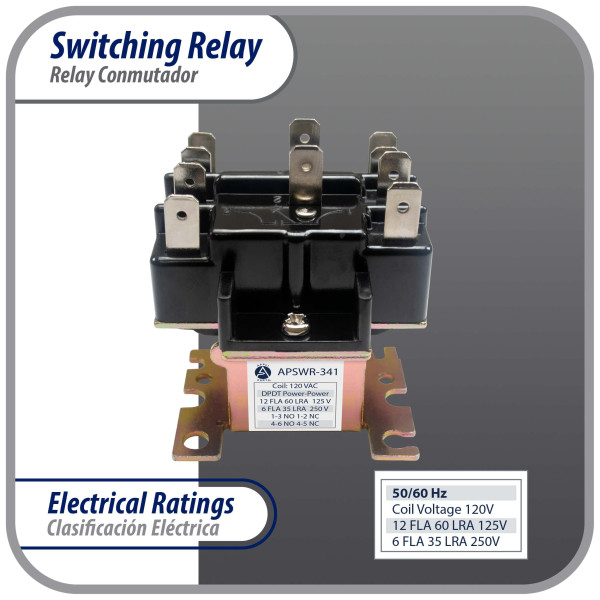

Details: Coil Voltage is 110-120 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V

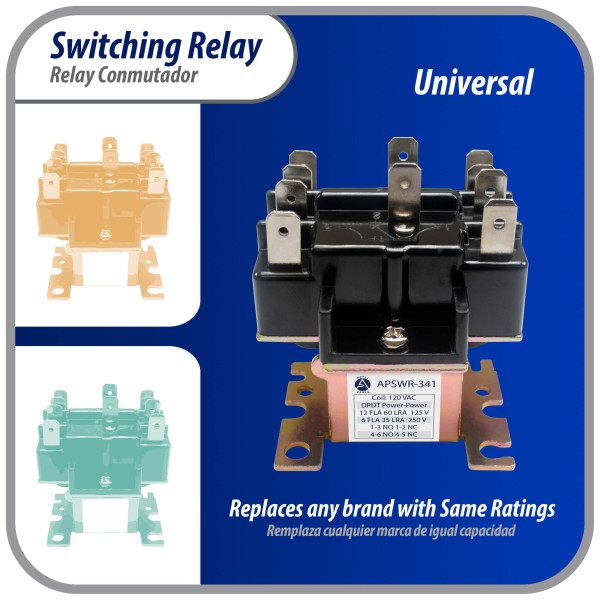

Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed
Replaces: this product is a direct replacement for Jard 92341, RBM 90-341, White-Rodgers 90-341, Mars 90341, Packard PR341, Honeywell R4222D1013, Supco 90341, Zettler ZC90341, APSR-341

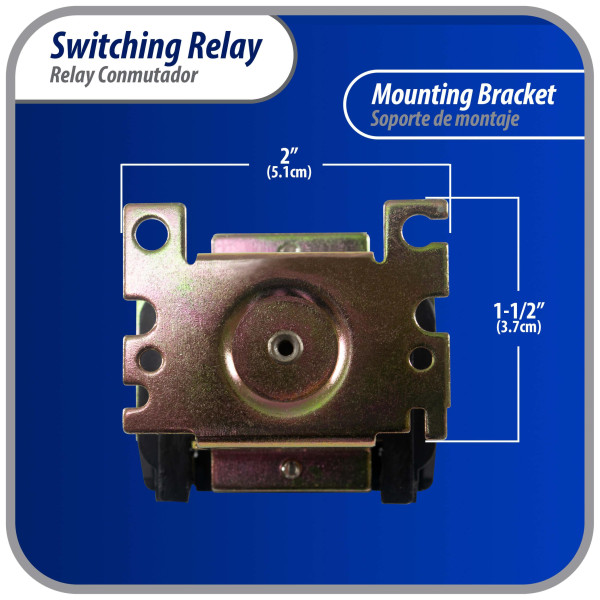

Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.52 LBR
Volume : 0.0086 FTQ
Model : APSR-341 / APSWR-341
UPC-EAN : 814245027841
Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications
Details: Coil Voltage is 110-120 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V
Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed
Replaces: this product is a direct replacement for Jard 92341, RBM 90-341, White-Rodgers 90-341, Mars 90341, Packard PR341, Honeywell R4222D1013, Supco 90341, Zettler ZC90341, APSR-341
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.52 LBR
Volume : 0.0086 FTQ
Model : APSR-341 / APSWR-341
UPC-EAN : 814245027841
G2010.341
New
Data sheet
- Product Feature
- Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
- Replaces: This product is a direct replacement for Jard 92342, RBM 90-342, White-Rodgers 90-342, Mars 90342, Honeywell R4222D1021, Supco 90342, Packard PR342, 90-112, Zettler ZC90342, APSR-342
- Replaces: this product is a direct replacement for Jard 92341, RBM 90-341, White-Rodgers 90-341, Mars 90341, Packard PR341, Honeywell R4222D1013, Supco 90341, Zettler ZC90341, APSR-341
- Replaces: this product is a direct replacement for Jard 92341, RBM 90-341, White-Rodgers 90-341, Mars 90341, Packard PR341, Honeywell R4222D1013, Supco 90341, Zettler ZC90341, APSR-341
- Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed
- Weight
- 0.52 LBR
- Volume
- 0.0086 FTQ
- Model
- APSR-341 / APSWR-341
- UPC-EAN
- 814245027841
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8536.41.0060
- Base Unit
- EA

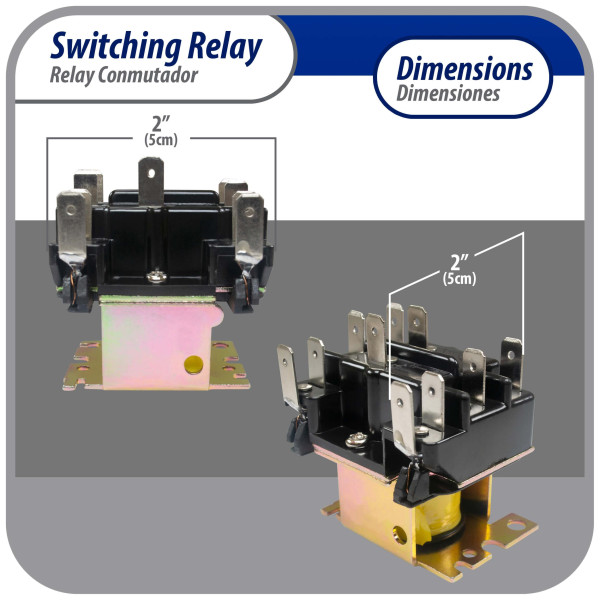

- Dimensions
- 5 x 5 x 5
- Power Supply (V)
- 110 V
