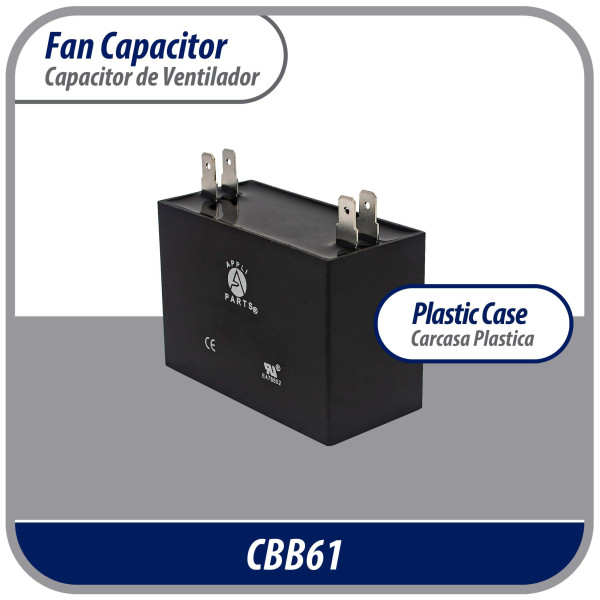

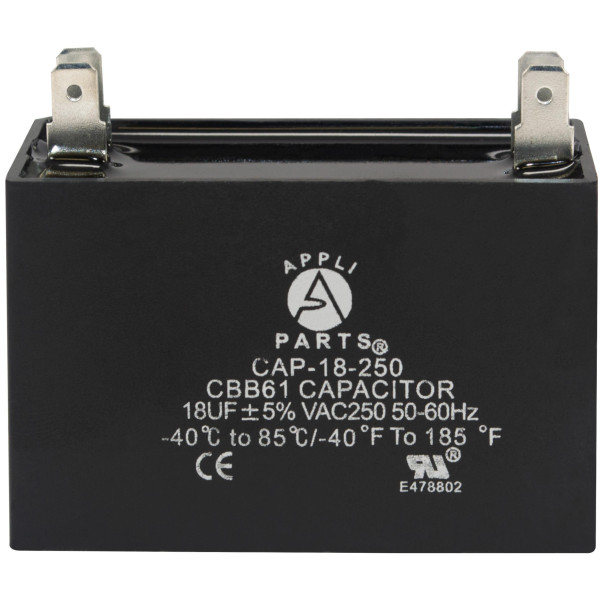

Appli Parts CAP-18-250 Fan Capacitor 18 mfd (microfarads) uf 250 VAC with 4 Terminal Connections compatible with any brand within the same range of capacitance 2-1/4 Width, 7/8 Depth, 1-7/8 in Height
SKU
G1111.CV182
Appli Parts CAP-18-250 Fan Capacitor 18 mfd (microfarads) uf 250 VAC with 4 Terminal Connections compatible with any brand within the same range of capacitance 2-1/4 Width, 7/8 Depth, 1-7/8 in Height

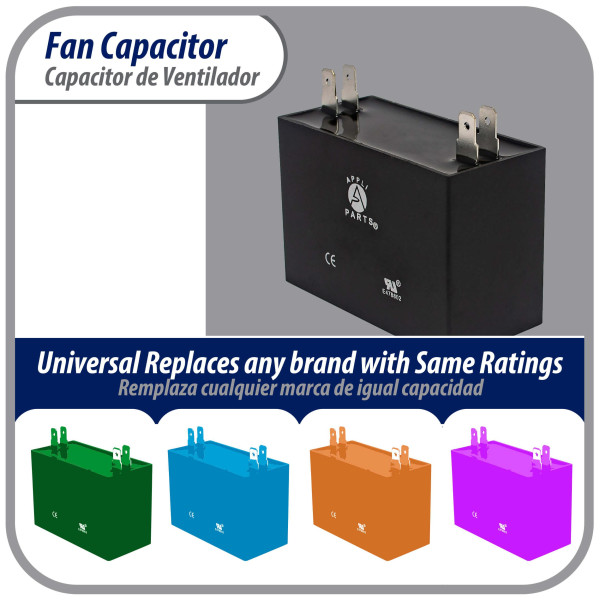

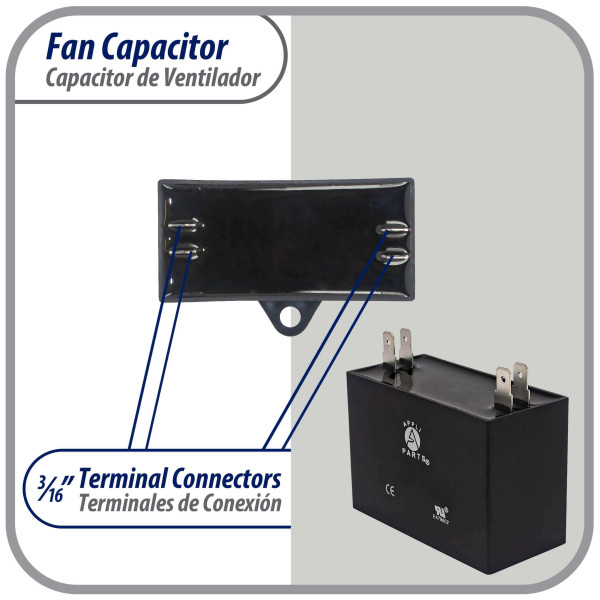

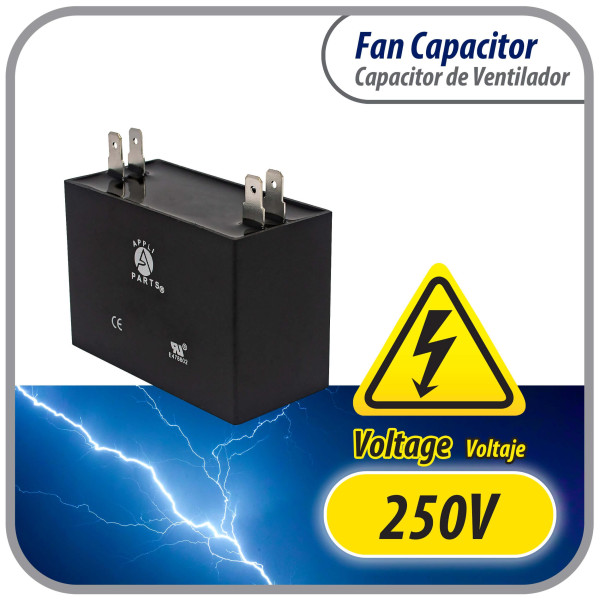

Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250VAC 1/16 in Male Quick-connect

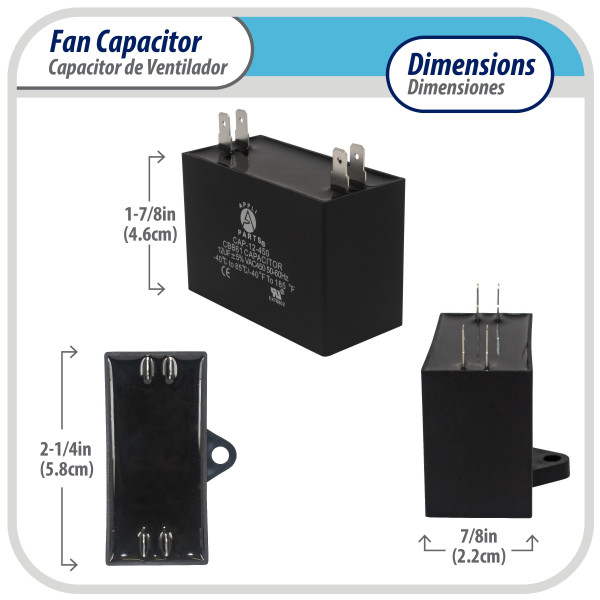

Specs: Tolerance is +/- 5% of capacity, working temperature environment from -40F (-40C) to +185F (85C), 50/60 Hz. Dimensions 1-7/8 in H, 2-1/4 in W, 7/8 in L

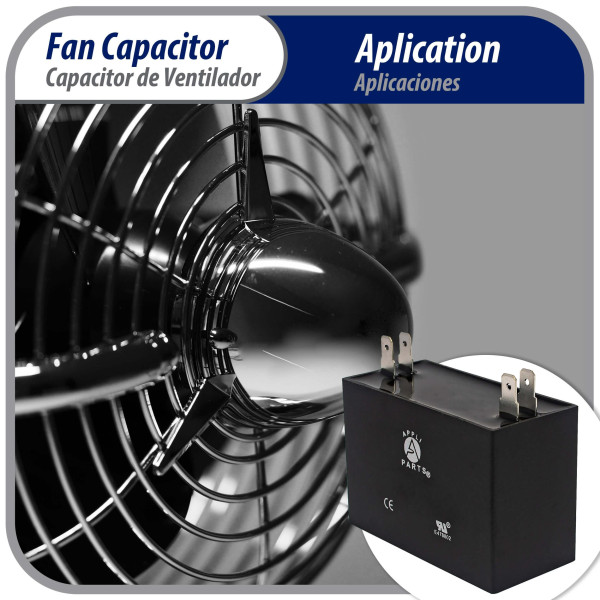

Applications: Fan capacitors have multiple applications, for ceiling fans, electric motors
Replaces: CAP-18-250 CON-18-250
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.51 LBR
Volume : 0.00390625 FTQ
Model : CAP-18-250
UPC-EAN : 814245023751
Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250VAC 1/16 in Male Quick-connect
Specs: Tolerance is +/- 5% of capacity, working temperature environment from -40F (-40C) to +185F (85C), 50/60 Hz. Dimensions 1-7/8 in H, 2-1/4 in W, 7/8 in L
Applications: Fan capacitors have multiple applications, for ceiling fans, electric motors
Replaces: CAP-18-250 CON-18-250
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.51 LBR
Volume : 0.00390625 FTQ
Model : CAP-18-250
UPC-EAN : 814245023751
G1111.CV182
New
Data sheet
- Product Characteristic
- Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250VAC 1/16 in Male Quick-connect
Specs: Tolerance is +/- 5% of capacity, working temperature environment from -40F (-40C) to +185F (85C), 50/60 Hz. Dimensions 1-7/8 in H, 2-1/4 in W, 7/8 in L
Applications: Fan capacitors have multiple applications, for ceiling fans, electric motors
Replaces: CAP-18-250 CON-18-250
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced - Model
- CAP-18-250
- UPC-EAN
- 814245023751
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8532.25.0010
- Base Unit
- EA
- Dimensions
- 9 x 9 x 9
Specific References
- UPC
- 814245023751
- MPN
- CAP-18-250
